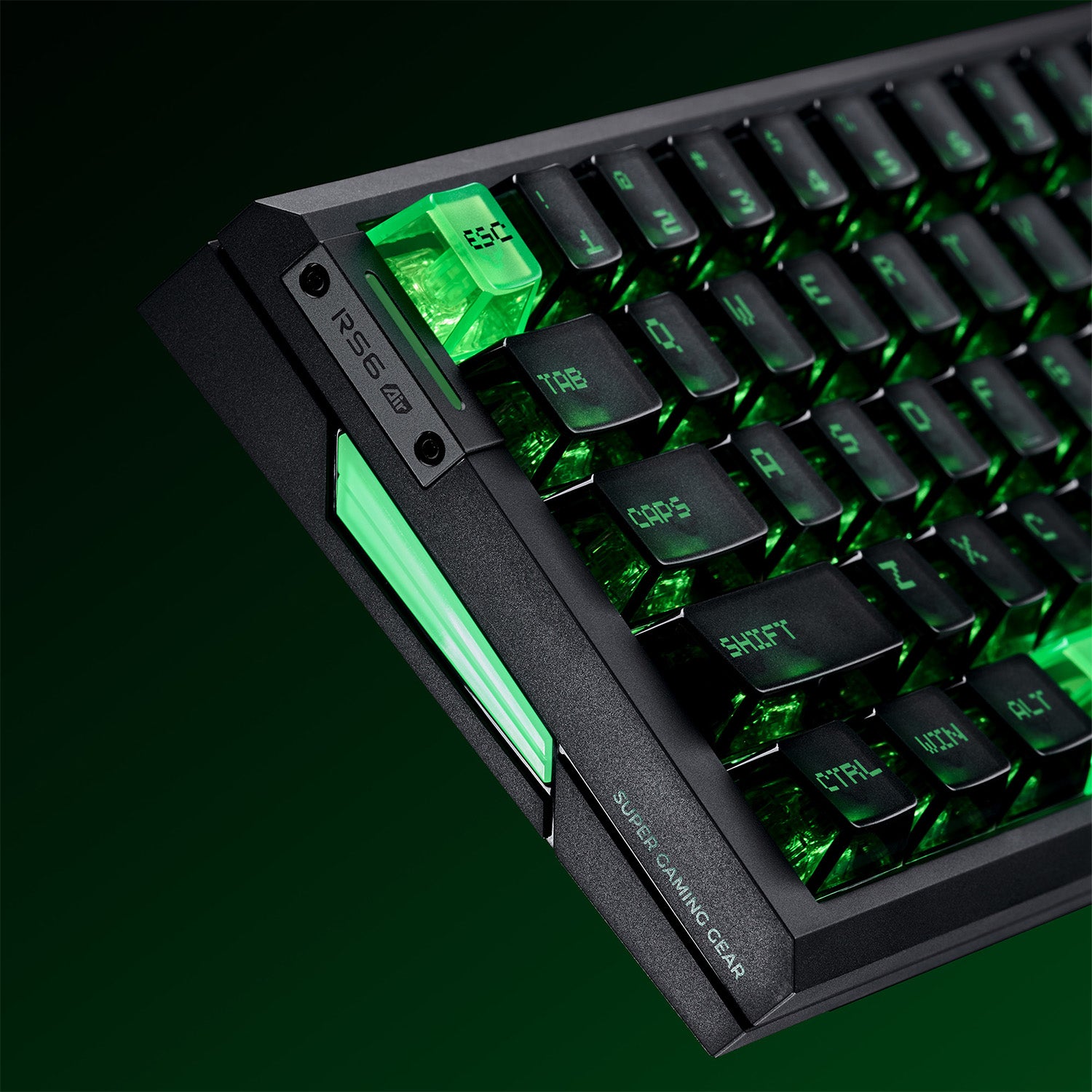

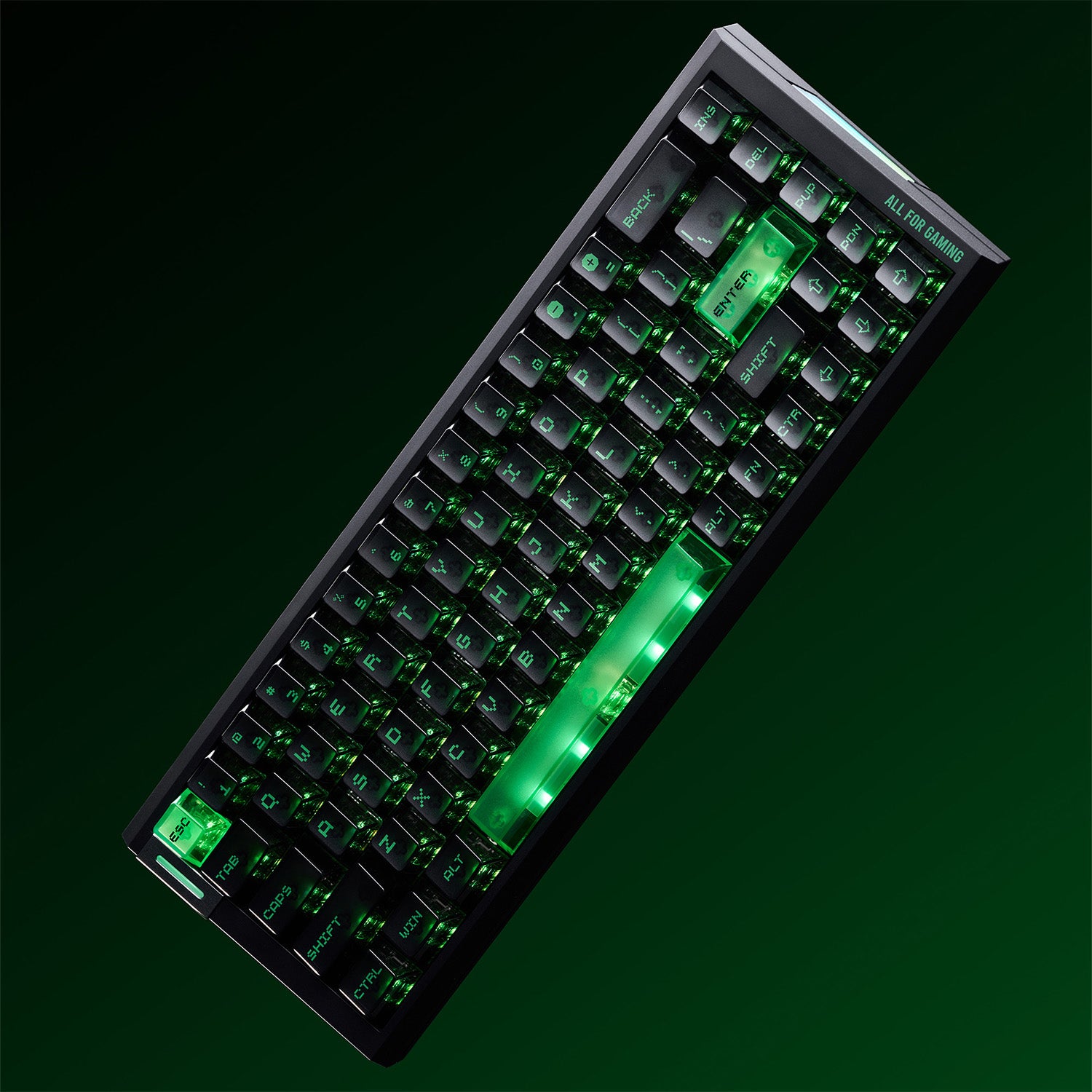

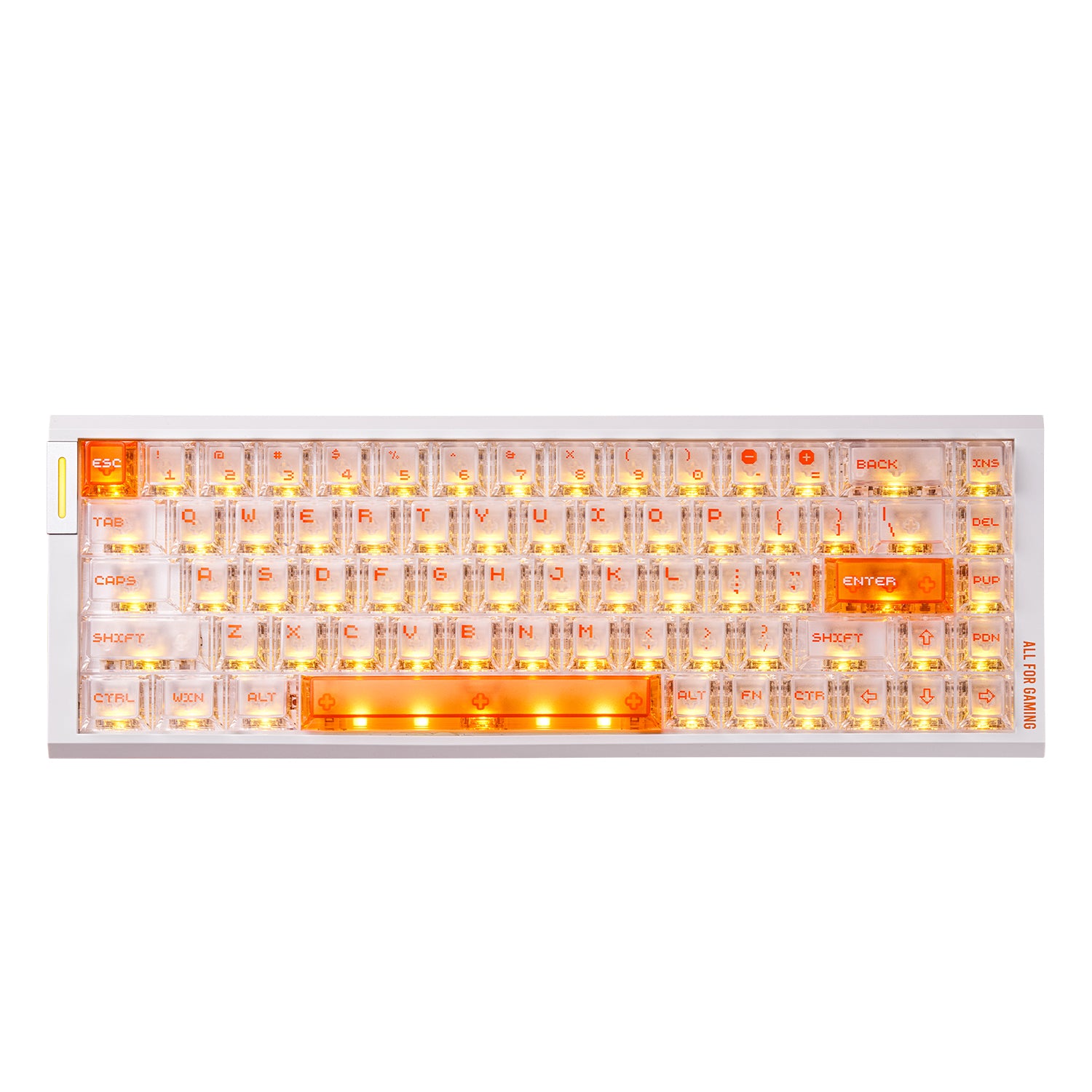

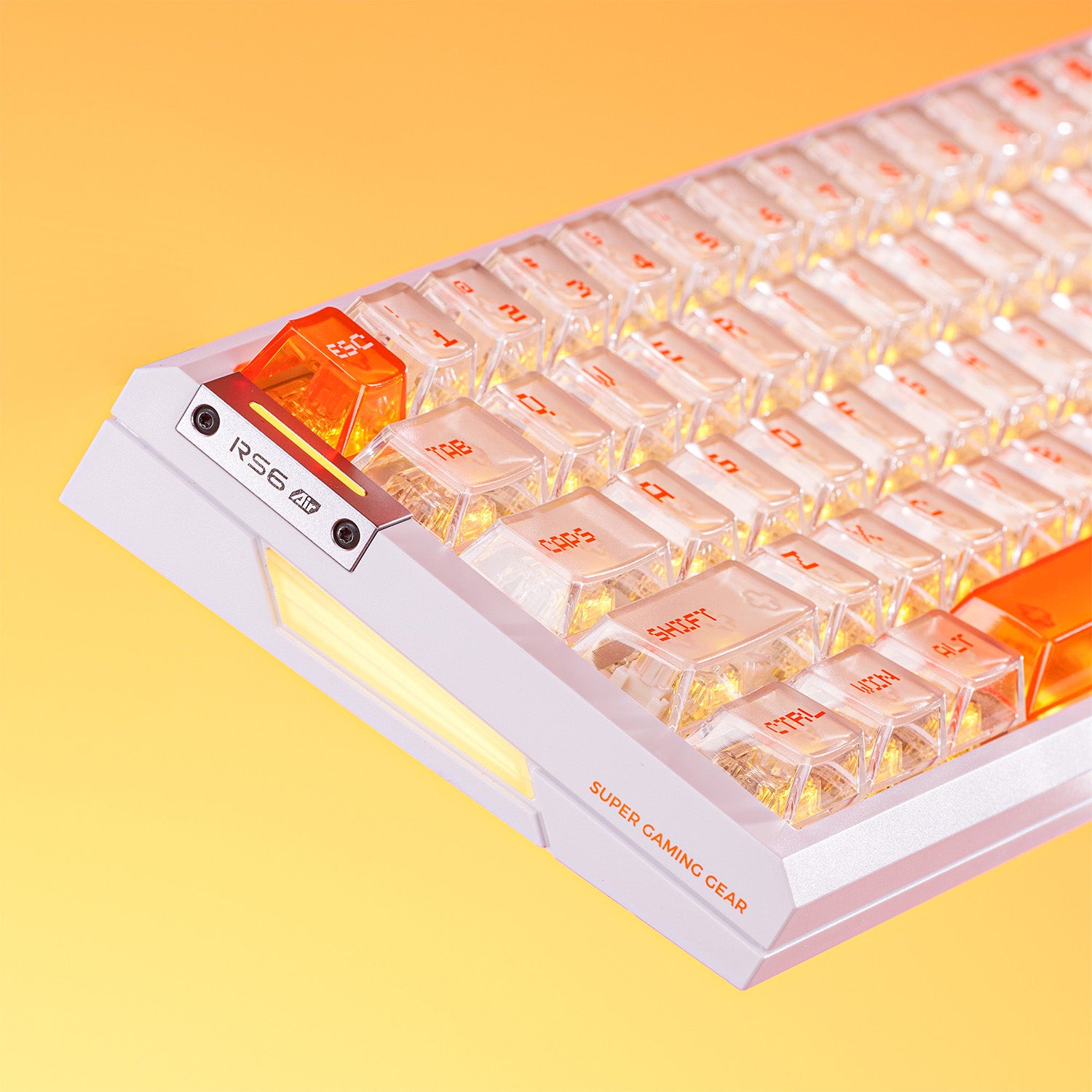

ATK RS6 Air Hall Effect Iceblade

Description

The ATK RS6 Air is a 65% ANSI hall-effect keyboard using magnetic switches, polling at 8000Hz with 0.08ms latency and a scan rate of 32KHz in N-Key mode or 256KHz in Extreme mode.

Rapid trigger resolves to 0.001mm across a 0.001-3.3mm range, giving fine control over actuation and reset points via the ATK HUB software.

This unit ships with Iceblade switches – 3.3mm total travel, 35gf actuation force, and a crystal-frosted housing with a prismatic light guide – under PC frosted Cherry-profile keycaps, with south-facing RGB, screw-in PCB stabilisers, hot-swap sockets and NKRO.

Specifications

• Layout: 65% ANSI, normal profile, hall-effect magnetic switches
• Switch: Iceblade – 3.3 +/-0.4 mm travel, 35 +/-5 gf actuation
• Polling rate: 8000 Hz; 0.08 ms latency
• Scan rate: 32 KHz N-Key / 256 KHz Extreme
• Rapid trigger precision: 0.001 mm within 0.001-3.3 mm
• Build: plastic case, PC frosted Cherry-profile keycaps, screw-in PCB stabilisers
• Features: south-facing RGB, hot-swap, NKRO, wired
