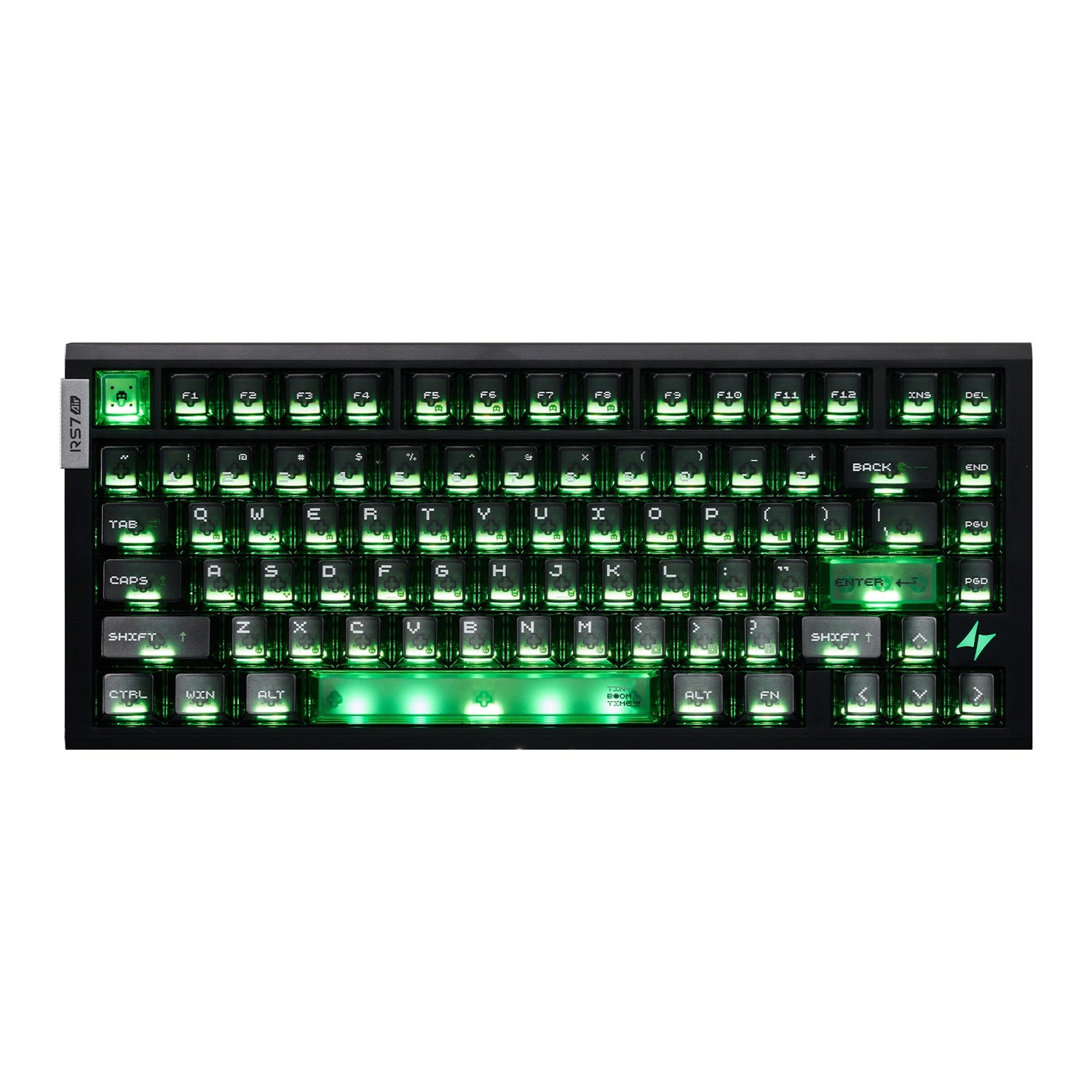

ATK RS7 Air Hall Effect Lucidblade

Description

The ATK RS7 Air is a 75% ANSI hall-effect keyboard on magnetic switches, polling at 8000Hz with 0.08ms latency and scanning at 32KHz in N-Key mode or 256KHz in Extreme mode.

Rapid trigger resolves to 0.001mm across a 0.001-3.3mm range, tunable through the ATK HUB software.

This unit uses Lucidblade switches, rated at 3.5mm total travel and 35gf actuation for stable, crisp keystrokes, in an ABS case with aluminium accents, PC frosted Cherry-profile keycaps, south-facing RGB, screw-in PCB stabilisers, hot-swap sockets and NKRO.

Specifications

• Layout: 75% ANSI, hall-effect magnetic switches
• Switch: Lucidblade – 3.5 +/-0.2 mm travel, 35 +/-5 gf actuation
• Polling rate: 8000 Hz; 0.08 ms latency
• Scan rate: 32 KHz N-Key / 256 KHz Extreme
• Rapid trigger precision: 0.001 mm within 0.001-3.3 mm
• Build: ABS case with aluminium accents, PC frosted Cherry-profile keycaps, screw-in PCB stabilisers
• Features: south-facing RGB, hot-swap, NKRO, ATK HUB software
